Product detail

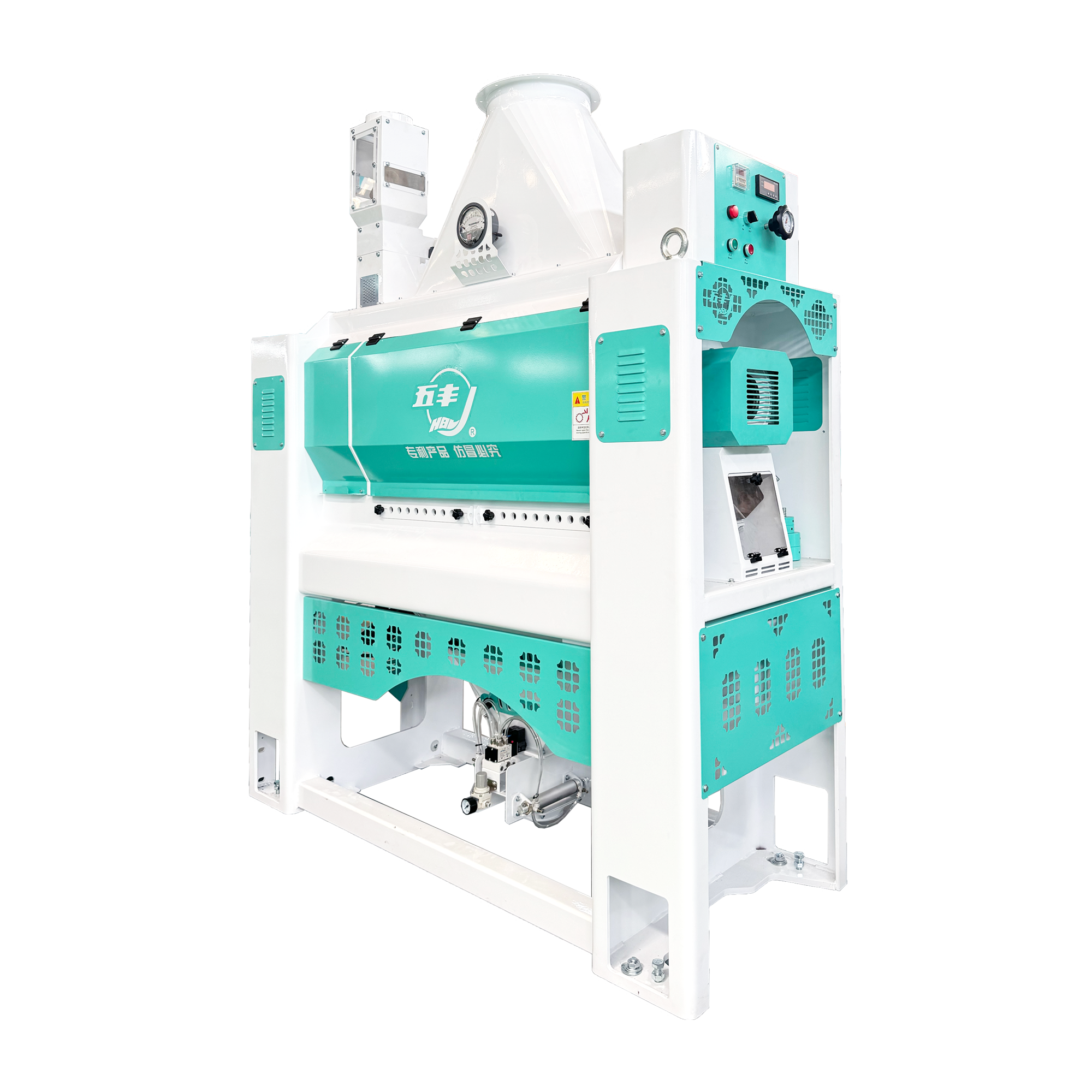

Emery Roll Whitener

Emery Roll Whitener

Series:

Rice Whitener Series

Characteristic:

● Features wide adjustable output range, low temperature rise, zero screen clogging, zero rice leakage and even whitening effect;

● Equipped with bran and broken rice separation function, dual air cylinder discharge gates  realize intermittent automatic discharging of bran and broken rice mixture;

● Adopts extra-large diameter shaft with multi-hole air intake to guarantee ample intake air volume and superior bran removal performance;

● The feeding section adopts rack-and-pinion drive to achieve tangential feeding, cut broken rice generation and simplify flow regulation;

● Fitted with current display, negative pressure indicator and multi-air damper regulating device  for convenient and stable operation.

Products Detail
ltem WFFN15JS WFFN35JS WFFN45JS WFFN55JS WFFN75JS WFFN95JS WFFN125JS
Capacity(t/h) 1-1.5 3-5 4-6 5-7 6-9 9-11 12-14
Air Volume(m3/h) 1400-1600 2200-3000 2500-3500 3000-4000 3500-4500 4500-6000 4500-6000
Power(kw) 11/15-4 22/30-4 30/37-4 37/45-4 45/55-4 55/75-4 75/90-4
Weight(kg) 242 680 700 780 820 900 1100
Dimensions(mm) 1349x530x1408 2080x670x1980 2080x670x1980 2080x670x1980 2360x680x2180 2726x720x2280 2836x750x2280
