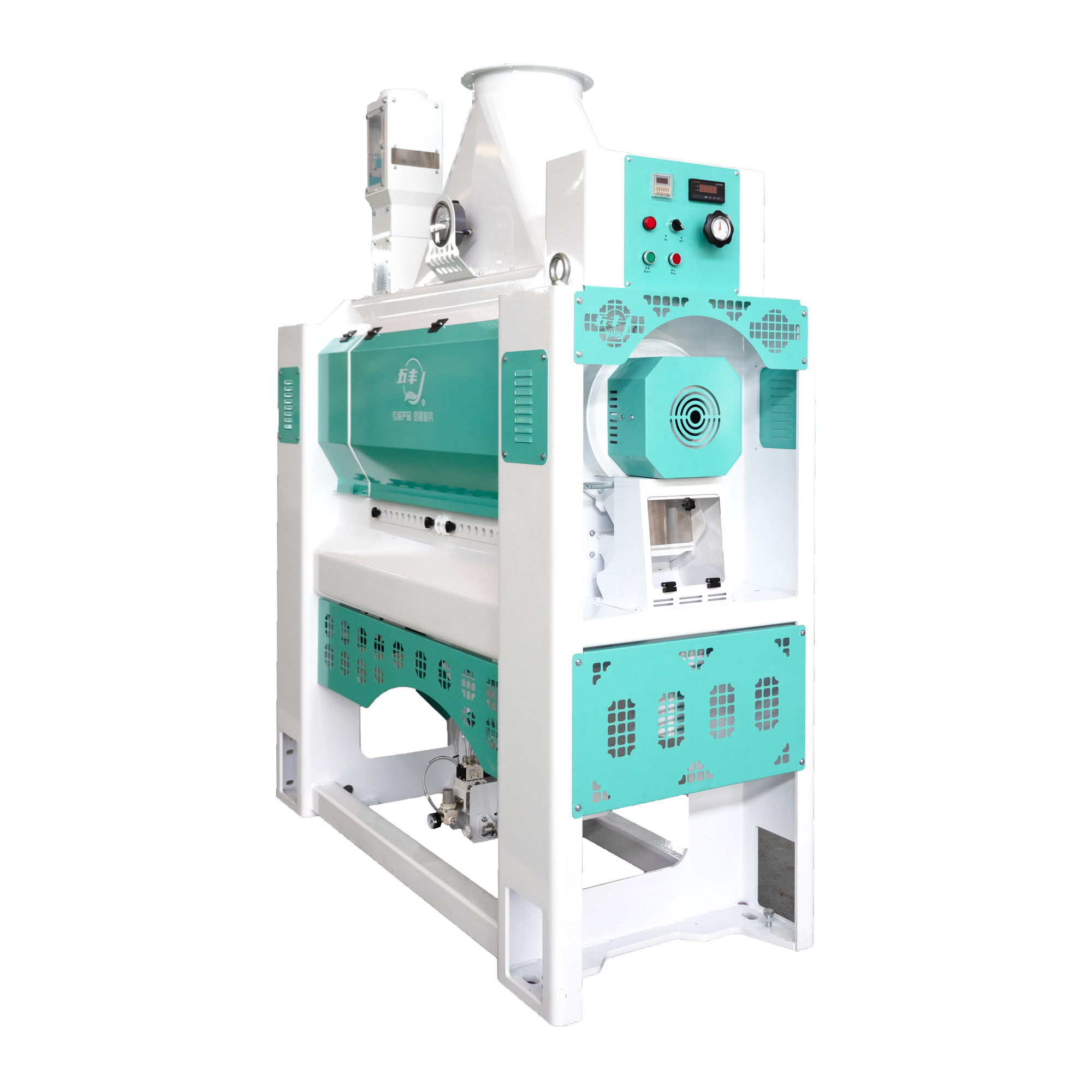

Up Suction Iron Roll Whitener

Up Suction Iron Roll Whitener

Series:

Rice Whitener Series

Characteristic:

● Adopting a patented top suction structure, the rice is kept in a suspended state for whitening, ensuring balanced whitening pressure;
● Customers can choose to have their own starting control system and large motor, which has low starting current and overload alarm functions;
● The equipment has the function of separating bran from rice bran, and adopts a double-cylinder unloading gate to facilitate intermittent automatic unloading of rice bran;
● The feed hopper is equipped with a control sensor, and the feed cylinder is linked to open and close quickly to ensure stable flow, no material falling, and no machine blockage;
● Equipped with current and negative pressure display and multi-damper adjustment device, it is easy and reliable to use;
● According to the different characteristics of indica rice and japonica rice, different special cast iron rollers are used to ensure effective degermination and reduce broken rice.

Products Detail
Item WFTG35JS WFTG55JS WFTG75JS WFTG95JS
Capacity(t/h) 3-4 5-7 7-9

10-12

Air Volume(m3/h) 2200-3000 2500-3500 2800-3200 4000-5000
Power(kw) 30/37-4 37/45-4 45/55-4 75/90-6
Weight(kg) 720 740 850 920
Dimensions(mm) 2088x670x1980 2088x670x1980 2360x680x2180 2442x720x2160
