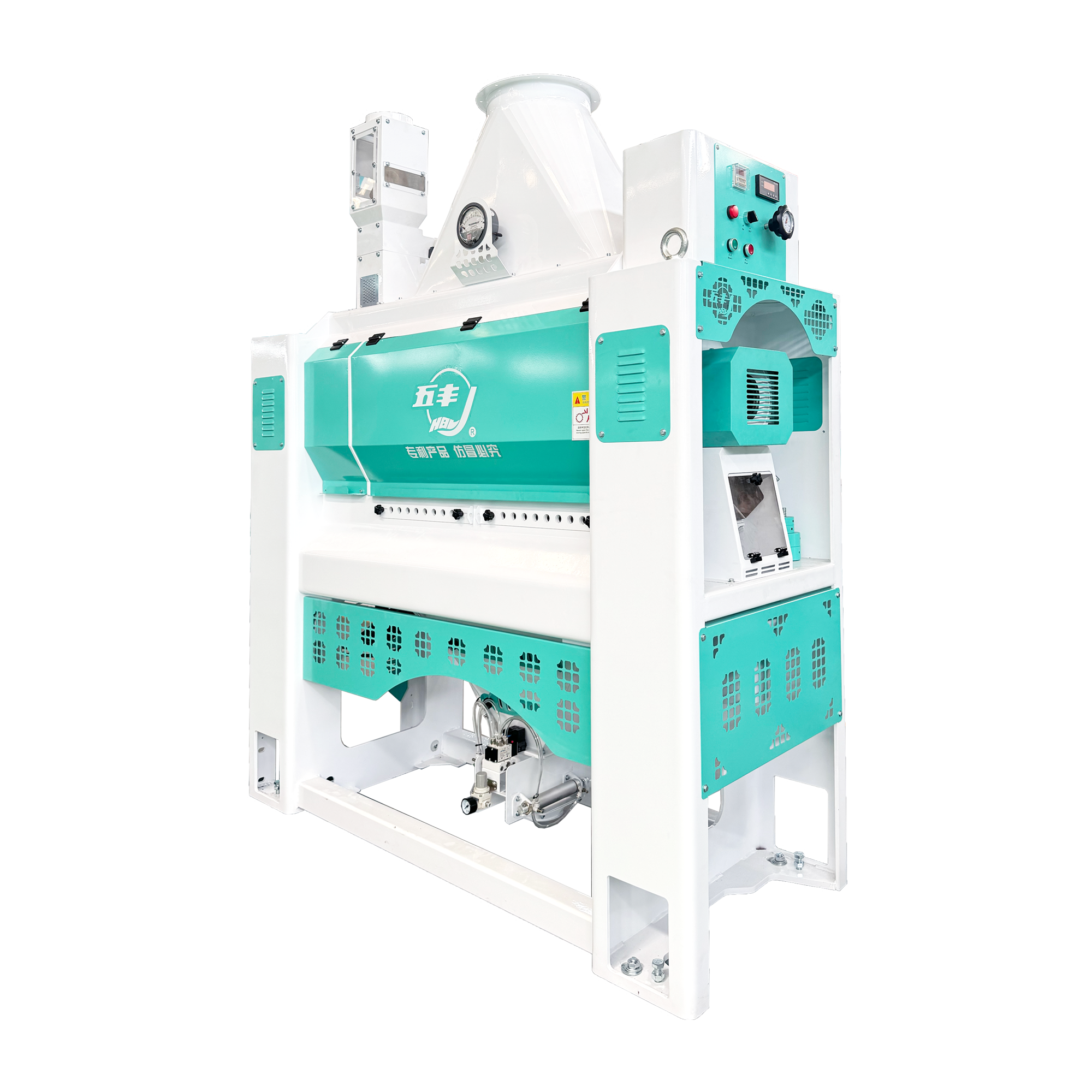

Up Suction Emery Roll Whitener

Up Suction Emery Roll Whitener

Series:

Rice Whitener Series

Characteristic:

● The patented top air suction structure allows the rice to be suspended in the milling chamber for milling, ensuring balanced pressure;

● This machine has the characteristics of large output adjustment range, low temperature rise, no sticking of the screen, no rice running and uniform grinding;

● The equipment has the function of separating rice bran from bran, and adopts double cylinder unloading gate to facilitate intermittent automatic unloading of rice bran;

● Extra-large shaft diameter and multiple air inlet holes ensure sufficient air volume and chaff removal effect;

● The feeding adopts gear rack transmission to ensure tangential feeding to reduce broken rice and facilitate flow control;

● Equipped with current and negative pressure display and multi-throttle adjustment device, it is easy and reliable to use.

Products Detail

ltem

WFFN35JS

WFFN45JS

WFFN55JS

WFFN65JS

WFFN85JS

Capacity(t/h)

3-6

4-7

5-8

6-10

8-12

Air Volume(m3/h)

2200-3000

2500-3500

3000-4000

3500-4500

4000-5000

Power(kw)

22/30-4

30/37-4

37/45-4

45/55-4

75/90-4

Weight(kg)

680

700

780

850

1100

Dimensions(mm)

2088x670x1980

2088x670x1980

2088x670x1980

2442x720x2160

2620x720x2160
